Product Description
We are the OEM stainless steel casting supplier in Guangdong China, we major at stainless steel lost wax casting and precision machining in our own factory.
stainless steel casting usual technology is Lost wax casting(or call it investment casting).
The technics capabilities: Lost wax casting (Investment casting)-Silica sol casting, sodium silicate sand casting, then precision machining.
Materials: SS304 SS316L.
Finish treating: Sand ripple, sandblasting, mirror polishing, color separation, and passivation.
Item Name | Stainless Steel Lost Wax Casting |
General Products | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, , transmission shaft , transmission gear etc. |
Main Blank Process for Stainless Steel Casting | Investment casting (wax mold made by middle temperature wax) /Precision casting ; |
Blanks Tolerance -Casting Tolerance | CT7-8 for Lost wax Casting Process |
Applicable Material for steel casting | Carbon Steel, Alloy Steel, |
Casting Blank Size | 2 mm-600mm / 0.08inch-24inch according to customer requirement |
Casting Blank Weight | Range from 0.01kg-85kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment | Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching etc. |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting, etc. |
MOQ for batch order | For casting: 100pcs For Machining: 50pcs |
Lead Time | 50 days for alloy castings |

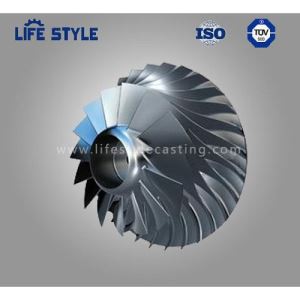

Casting Product Show
Manufacturing Process:
Process design⇒ Tooling making ⇒ Wax injection ⇒Wax pattern assembly⇒ Mold preheat ⇒ Wax removal ⇒Stuccoing ⇒Dipping Casting⇒ Mold shake out ⇒Work piece cut-off ⇒ Grinding ⇒ Pack& transport ⇒ Final inspection ⇒Machining ⇒ Heat treatment
Inspection Tools
Major Machining Equipment List:
| Machining Capabilities | |
| Three-Axis turning centre: 1 | Four-Axis Vertical Machine Center: 28 |
| Four-Axis Horizontal Machine Center: 1 | CNC Milling Machine: 6 |
| Vertical Lifting Milling Machine: 4 | Universal Milling Machine: 2 |
| Plane Milling Machine: 2 | Fase Milling Machine: 3 |
| CNC Lathe Machine: 27 | Oblique Guide CNC Lathe Machine: 2 |
| Engine Lathe Machine: 6 | Special Lathe: 5 |
| Radial Drilling Machine: 4 | CNC Porous Drilling Machine: 6 |
| CNC Spcial Drilling Machine: 2 | Cylindrical Drilling Machine: 11 |
FAQ:
1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
