Application of stainless steel glass spider routel
Usually, the glass spider routel pass through the glass and fix the glass on the steel structure. The stainless steel glass spider fittings curtain wall is composed of glass routel, glass spider, connecting pieces and other components. glass spider are mainly used as supporting glass routel and transfer load weight to the fixed supporting structure system, which is an important part to connect the glass curtain wall.
Name | spider glass routel |
Materials | Stainless steel 304, Ni 8.0% |
Arms | 4arms |
Finishes | Satin or mirror |
Accessories | 4pcs 56mm or 58mm routels |
Glass thickness | normally for 8-18mm glass |
Packing | 1.One full set in one bubble bag. |
Our places | Warmly welcom to visit our place, you will see more of us |
Stock | have in stock |
Our Company
Not only good quality, but also good price, you can always get better price by contacting us. Learn more about our outdoor stainless steel glass spider fittings, routel, glass clamp fittings, stainless
steel handrail for stairs with ss rods by following details. Small details make big
difference.
We are the Cheapest glass spider factory in China , welcome to contact with us for detail info.
Glass Spider Routel Loading Weight Detail
Spider Fittings Detail

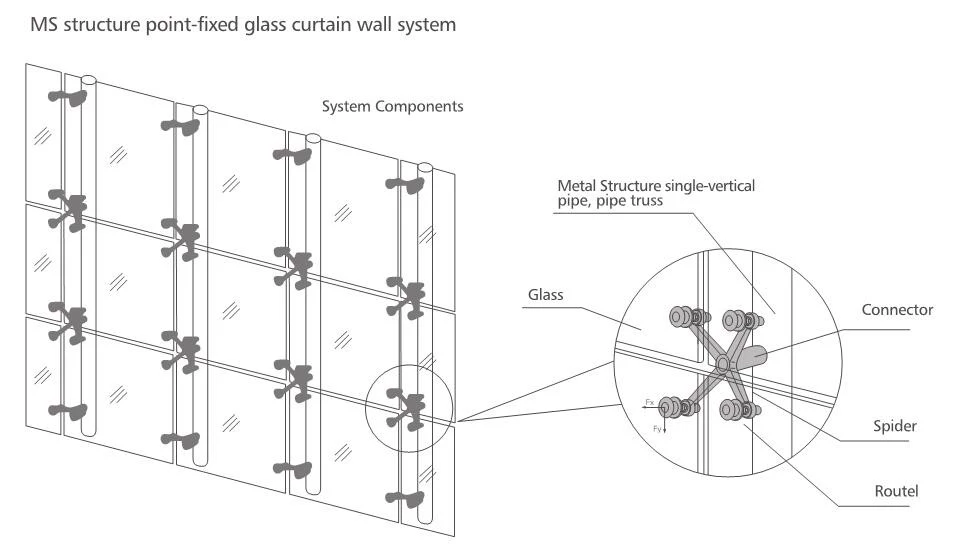

Spider Fitting Installation
Step 1:Welding the external threaded sleeve on the steel structure after taking off the internal threaded sleeve.
Step 2:Adjusting internal threaded sleeve to approprite position, then tighten up locking ring.
Step 3:Putting Bolt through the center hole of spider.
Step 4:Adjusting Installation position of spider, then compressing spider tightly with bolt.
Step 5:Dismantling parts like screws nut and eccentric washer,etc,making the required position for installation.
Step 6: Pre adjusting hexagon nut,spring washer,offset washer to the required position for installation.
Step 7: Eccentric washer to be placed on the spider and adjusted according to the requirement of installation,slot hole should be transverse when loading and. should be vertical without loading, and the long hole faces down.
Step 8: Putting the thread rod of routel through the hole of spider,and adjusting to appopriate position, then tightening bespoke nut.
Step 9: Sealing the surrounding between routel and glass with sealant to provent from leaking water.
