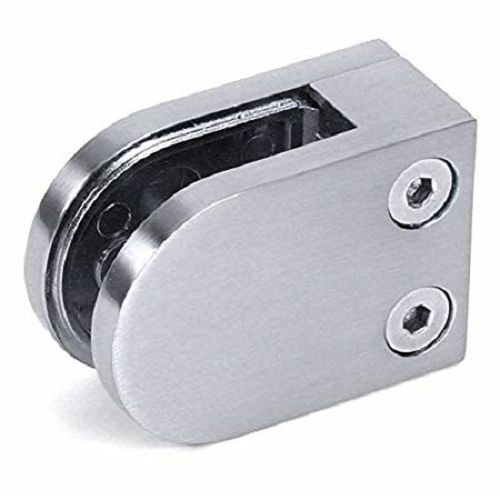

Glass Clamps and Supports

Model Number: LC-05
Material: Stainless Steel 304 OR 316
Surface: Satin or Mirror Finish
For glass: For glass 6~12mm
glass clip frame For Tube: 38.1/42.4/48.3/50.8mm
Mounted: Wall
round glass clamp Cleaning: Yes
Polishing test: Yes

Send Inquiry

Description

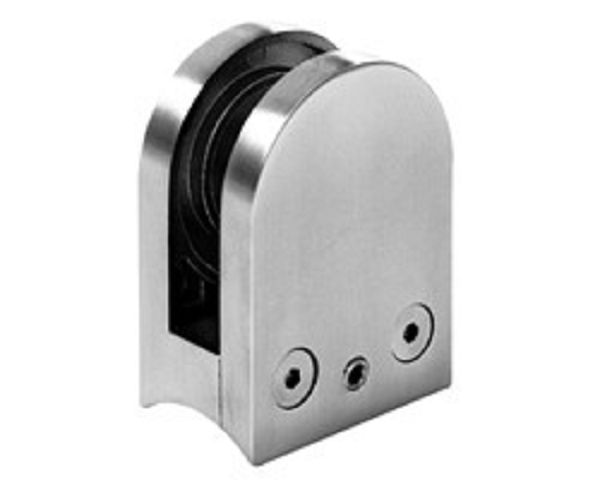

stainless steel glass clamps for balustrade glass clips for railings ,glass clamps and supports

Surface : Satin Finish

Supplied complete with Secure Pin x 1, Rubber Gasket x 2 and Side Reinforced Screws x 2
304 grade Stainless Steel, suits Interior Use or 316 grade Stainless Steel, suits Exterior Use
Suitable for 6, 8, 10 or 12mm glass
Suits Ø42.4mm baluster.
Available with optional Screw Cover Cap
Drilling hole in glass is optional (hole is required when using the Secure Pin)

STANDARD OF CHEMICAL COMPOSITION FOR STAINLESS STEEL MATERIAL(%)

Material	C	Si	Mn	P	S	Cr	Ni	Mo	Finish
AISI316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	16.0-18.5	10.0-15.0	2.0-3.0	Satin/ Mirror
AISI304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	17.0-20.0	8.0-12.0	--
