Camlock Connection

Standard: API, BSP
material: Stainless steel, Brass, Aluminum
Size: 1/2" ~ 6"
Place of Origin: China (Mainland)

Send Inquiry
Chat Now

Product Details

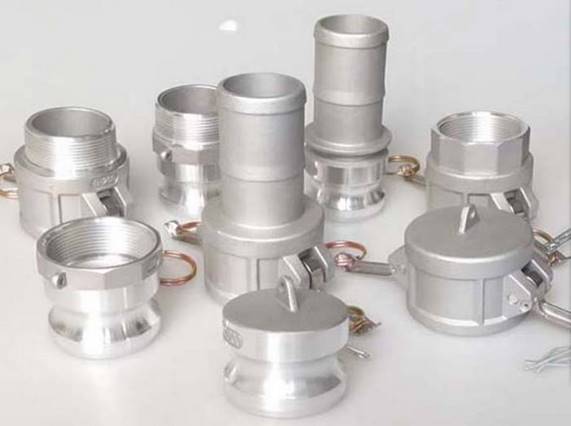

Camlock couplings are well-known as quick hose coupling providing quick connection and disconnection for pumps, tanks, equipment, IBCs and places where hoses should be changed frequently to achieve a special aim like paint & ink factory.


Cam & groove couplings are easy to operate. Camlock consists of two parts - male adapter and female coupler. You just need insert the adapter into the coupler until contact is made with the gasket. Then press down the cam arms simultaneously to produce a uniform gasket compression. During the process of installation, no tools are required and hand pressure is enough. Hence, camlock fittings not only save your time but also the tools and human power



Quick coupling; camlock coupling

Material:

stainless steel316, 304;brass;aluminium;.

Place of origin:

China (mainland)

Type:

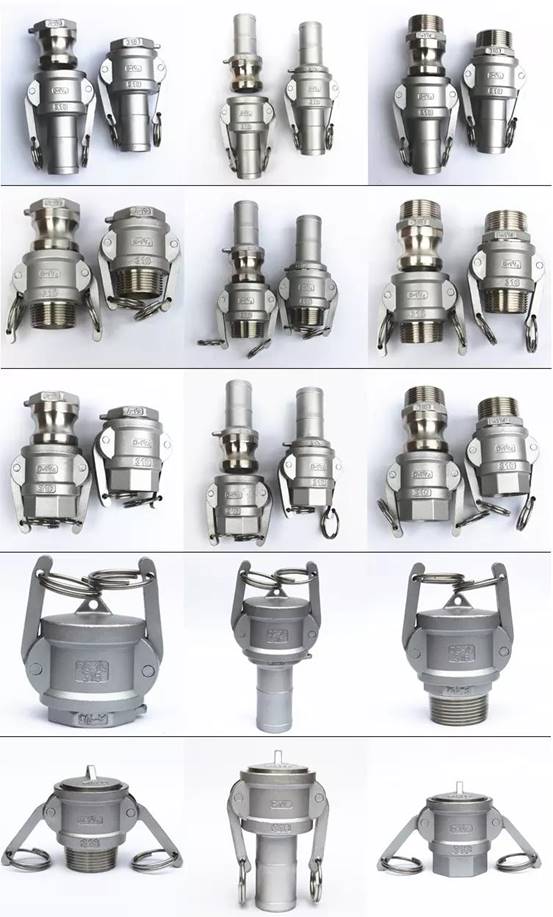

A, B, C, D, E, F, DC, DP, DD, DA or as customer’s request

Thread:

NPT, BSP, BSPT, We usually make the female thread parallel BSPP
, male thread tapered BSPT.

Seal:

NBR, EPDM, Viton, PTEE envelop gastet and other materials are
available on request.

Connection:

Male; female;(screw)thread; welding ;leather hose;

Size:

1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4", 5", 6", 8", 10", 12"

Gasket:

buna(NBR), viton and Telfon, silica

Casting Method:

die casting and gravity casting

Test pressure:

1/2" 150PS;3/4"-2" 250PSI(17.6bar);
3"-4" 200PSI(14.8bar); 2 1/2" 225PSI(15.8bar);
6" 150PSI(10.5bar)

Workmanship:

Precision casting or forged

Application:

oil, petroleum, chemical, water, gas

Packing:

Inner plastic bag, outer carton, then wooden pallet;
or as customer’s requirement.

Payment Terms:

T/T, L/C, D/P

Delivery time:

1 month



Production Covers:

We have years of experience in Camlock Coupling, Air Hose Coupling, Bauer Coupling, Guillemin Coupling, Storz Coupling, Ground Joint Swivel Nut Coupling, Clamps, Ferrules, Spanner Wrenches, Hydraulic & Pneumatic Coupling, hoses and so on.


MAIN PRODUCTS


TECHNOLOGE PROCESS

Our Certificate:



Packing & Delivery

Packaging Details:

FAQ

1. Can we get your free samples?

A)For the samples in our stock size, sure, we'd love to provide you for free to test the quality, but hope you can bear the Freight cost.

B) For the customized samples, we can also open a new mould as your requests, but hope you can bear this samples cost.


2.What is the normal lead time?
A). For stock products, we will send goods to you within 1~7days after receiving your payment.
B) For mass production, lead time is around 30~40days, and longer if need open new mould.


3. Shipping

A)For small trial order, FEDEX, DHL, UPS, TNT etc can be provided.

B)For larger order, we can arrange shipment by sea or by air according to your requirement


Welcome to inquiry!
