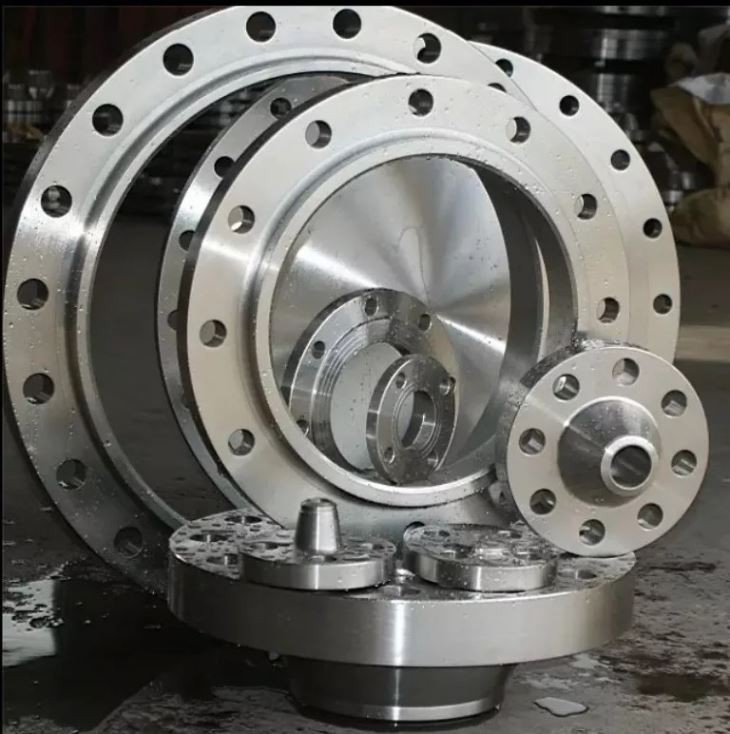

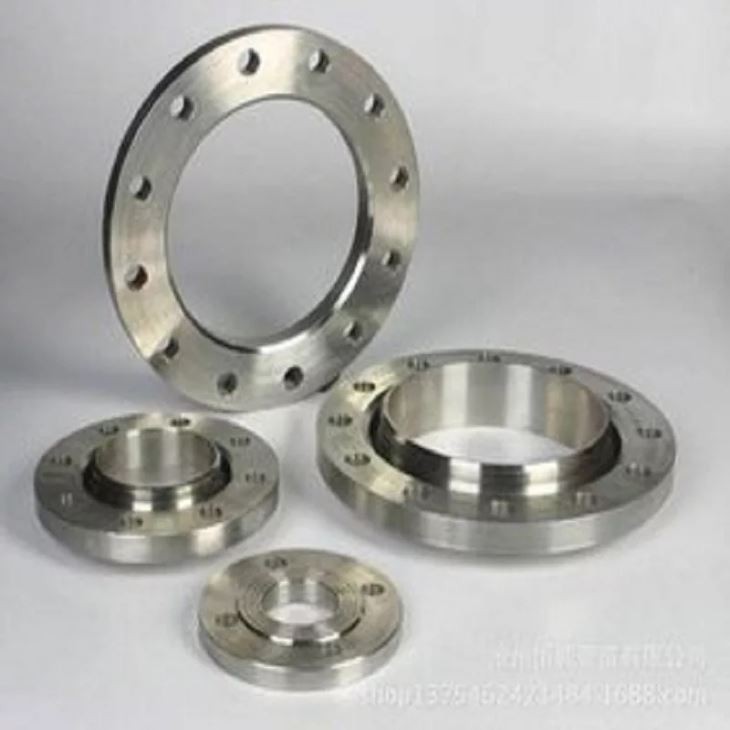

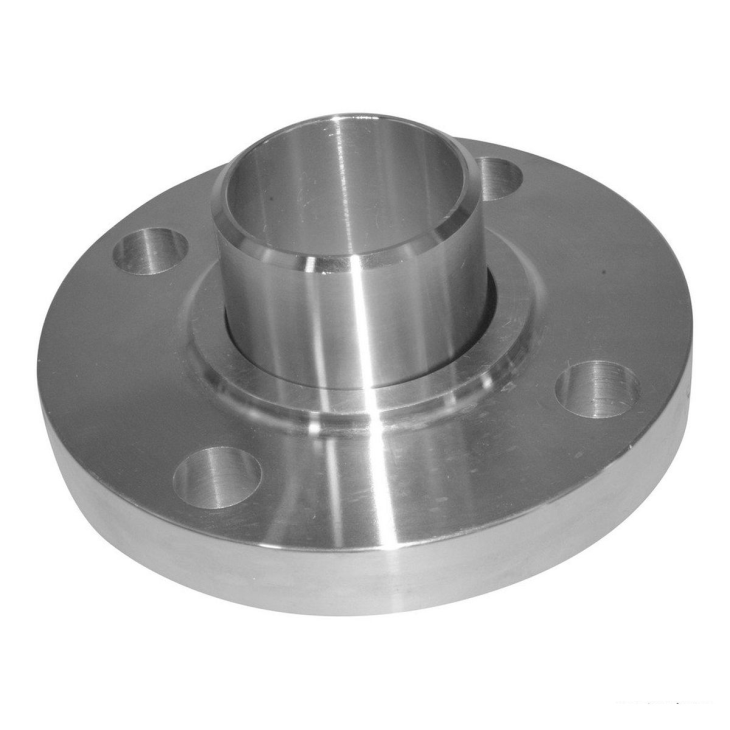

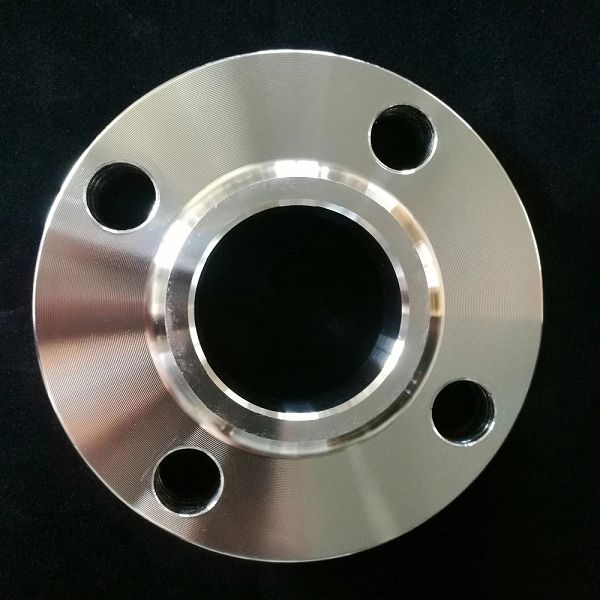

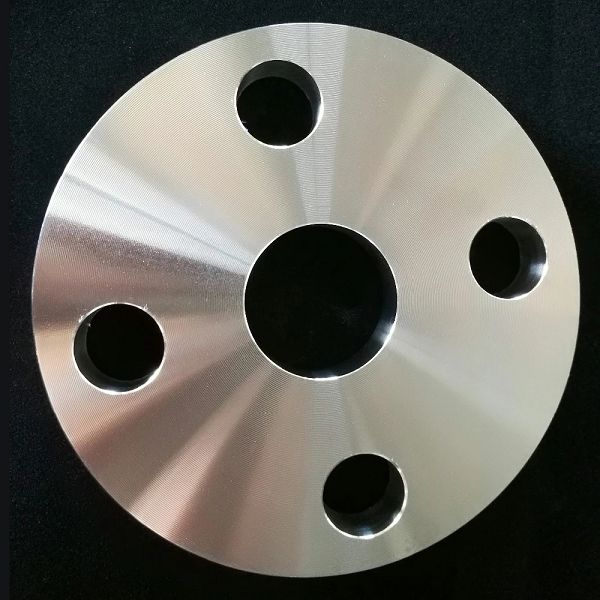

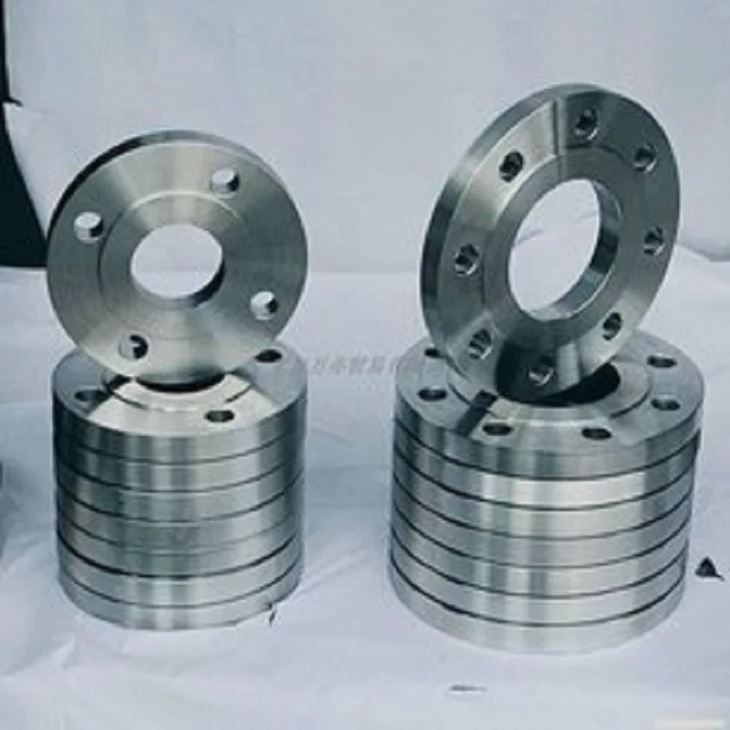

Lap Joint Flanges

Size: 1/2"-24"
Meterial: Stainless Steel, carbon steel
Pressure: Class150/300/600/900/1500/2500/3000/6000/9000
Packing: Wooden Case

Send Inquiry
Chat Now

Product Details

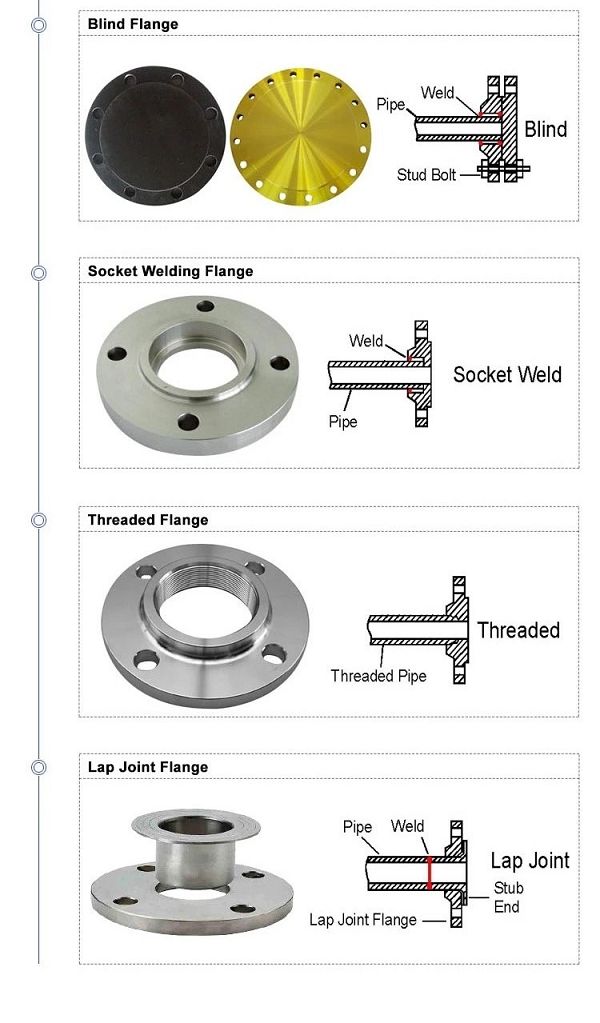

Lap joint flanges use a stub end that is welded to the pipe. A ring flange fits loosely around the stub end, permitting easy flange alignment of the bolt holes. A lap joint flange is also called Van Stone or Stub Flange. The stub ends are available in three styles (Types A, B, and C) and two lengths (Short and Long).

Size

DN10-DN2000


Type

Elbow: L/R;S/R;15Degree;45Degree;90degree;180Degree,etc
Reducer: eccentric;concentric
Tee: equal;reducing
Cross: equal;reducing
Cap, stub end, flange
Forged fitting, santiary fitting

Thickness

Sch5-Sch160, STD, XS, XXS

Material

Stainless Steel: a182 F304L, 316L, F304L, F316L, 321,347, 660 , 718ETC
Duplex Steel: F51/2205/S31803,F53/2507/S32750

Pressure

PN40, 64, 100, 160, 250, 320, 1500, 2000, 2500, 3000, 6000,9000LBS

Inspection

a) Factory in-house
b) Third party inspection available upon request
c) Different accessories are available

Treatment

a) sand blasting, mirror polishing, sand rolling, acid cleaning
b) as per customer's requirement

Term of payment

T/T(in advance)

Package

Plywood case, wooden cases, pallet, or customers requirement

Delivery

15-30 days after deposit

Application

Petroleum, chemical, machinery, paper making, construction, tc

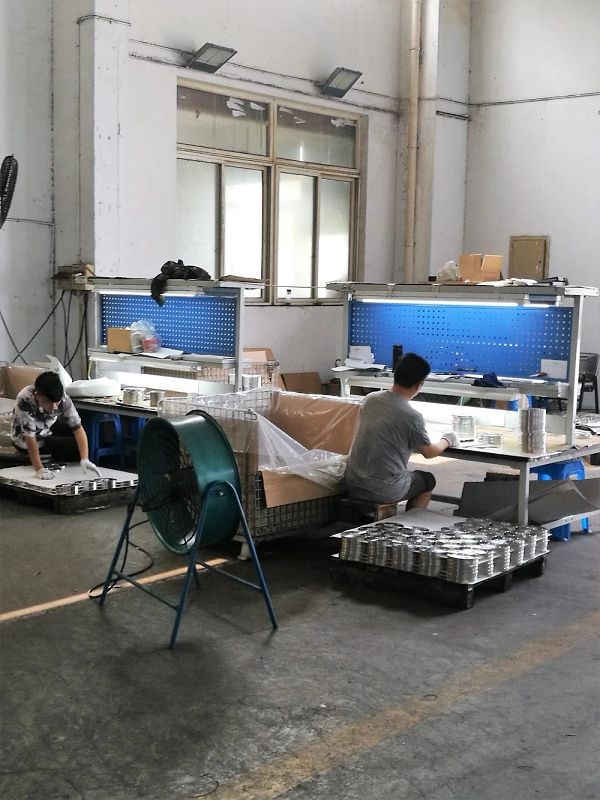

Factory Show

Our Certificate:

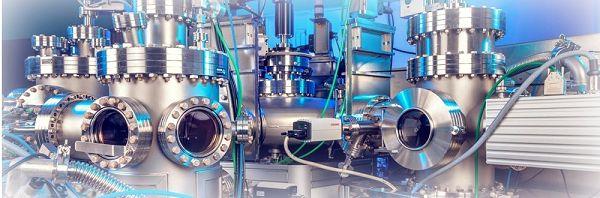

Application

Packing & Delivery
Wooden cases or according to customers' requirements.


FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

NOTE: The part here of only displays our processing capabilities, if customers have any parts of similar processing methods, please send us the drawings and specifications for our accurate quotation. And the price shown above is for reference only, in case customers are interested in it, please feel free to contact us for more details.


Welcome to inquiry!
